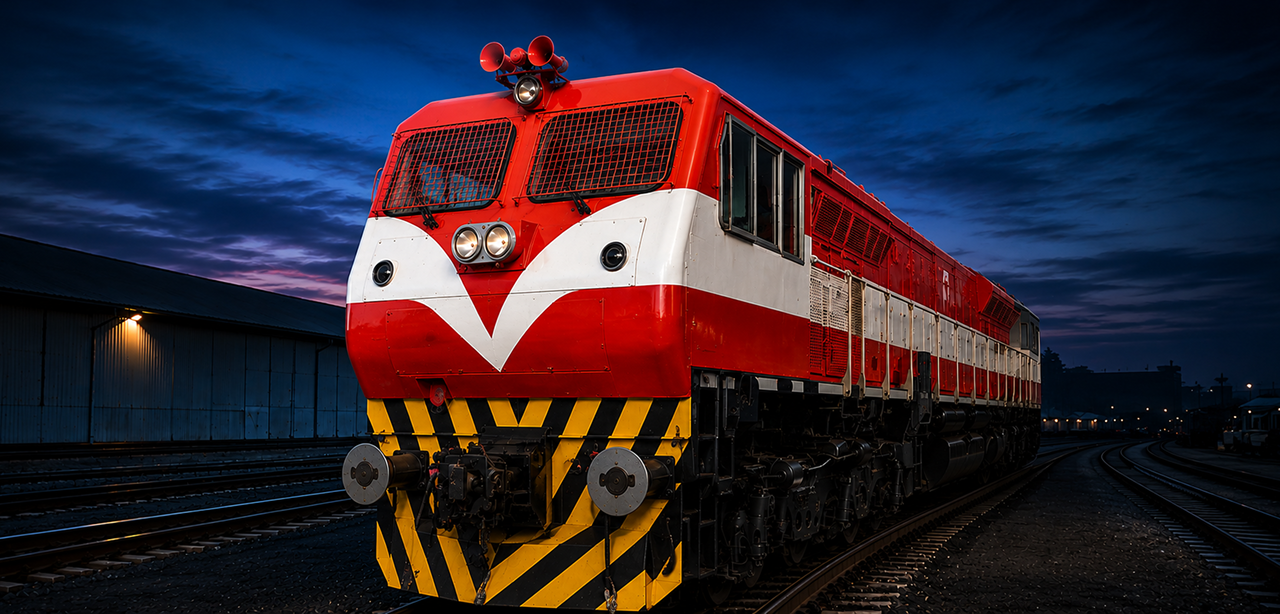

NARROW GAUGE
3000 HP DIESEL
ELECTRIC LOCOMOTIVE
1676 mm GAUGE
(NEW LOCOMOTIVE)
KEY PARAMETERS
Installed Power
3000 HP
Axle Load
20 T (+2%)
Gauge
1676 mm
Wheel arrangement
Co-Co
Wheel diameter
1000 mm
Height
3965 mm
Width
3000 mm
Length (Over Beam)
19964 mm
Weight
120 T (+2%)
Max. Tractive Effort
400 KN
Maximum Speed
100 Kmph
Fuel tank capacity
6000 Ltrs.
Locomotive Control
Micro Processor Control IGBT
Diesel Engine
12, Cylinder, 710 G3B, 2 stroke turbocharged
Transmission
Electrical, AC-AC with individual axle control
Suspension
Axle hung/ Nose suspension
Brakes
Air, Hand, Dynamic Brake
Electronic Air Brake System (KNORR-NYAB-Computer
ControlledBraking)
Truck
Tri-mounted Fabricated Co-Co bogie
