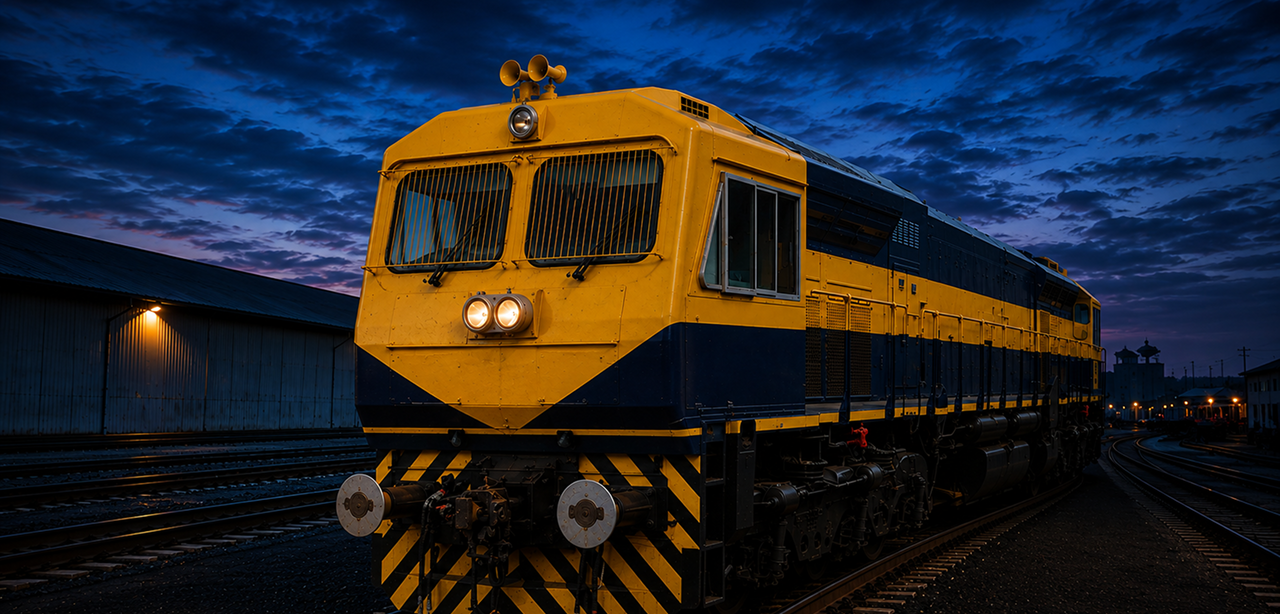

UTILITY BROAD
3000 HP DIESEL
ELECTRIC LOCOMOTIVE
1676 mm GAUGE
(NEW LOCOMOTIVE)
KEY PARAMETERS
Installed Power
3000 HP
Axle Load
20 T
Gauge
1676 mm
Wheel arrangement
Co-Co
Wheel diameter
1092 mm
Height
3965 mm
Width
3000 mm
Length (Over Beam)
19964 mm
Weight
120 T
Max. Tractive Effort
400 KN
Maximum Speed
100 Kmph
Fuel tank capacity
6000 Ltrs.
Locomotive Control
Micro Processor Control IGBT
Diesel Engine
12, Cylinder, 710 G3B,stroke turbocharged
Transmission
AC-AC
Suspension
Axle hung/ Nose suspension
Brakes
Electronic Air Brake System (KNORR-NYAB-Computer Controlled
Braking)
Truck
Tri-mounted Fabricated Co-Co bogie
Adhesion (μ) - 0.35
