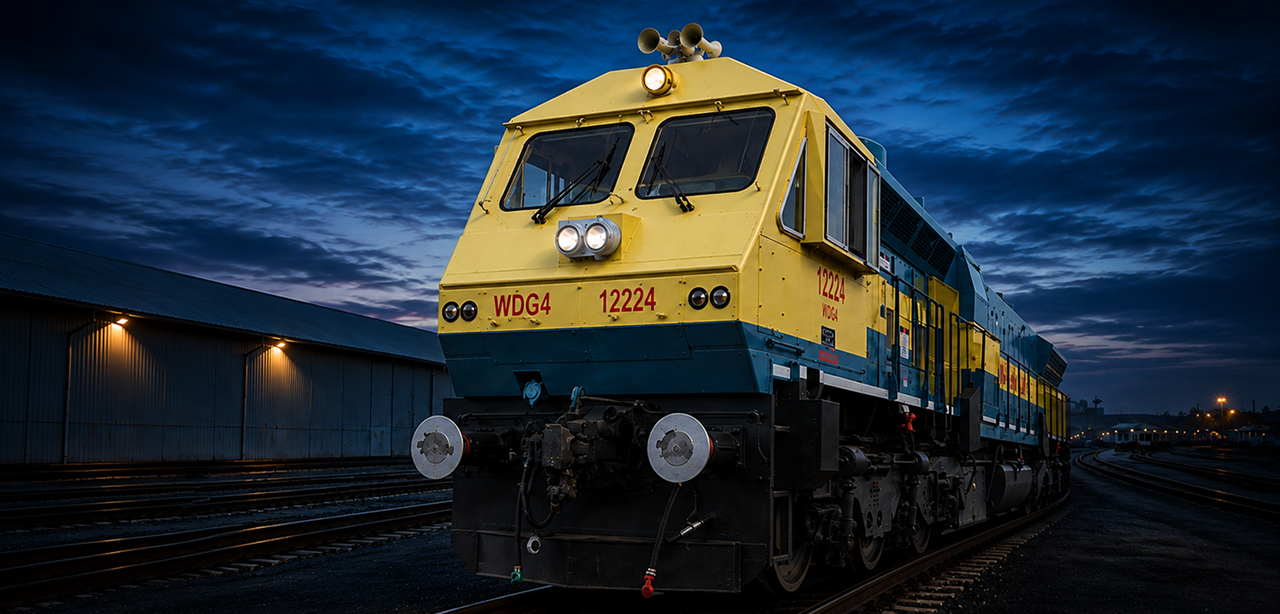

STANDARD GAUGE
4500 HP DIESEL
ELECTRIC LOCOMOTIVE
1435 MM GAUGE
(NEW LOCOMOTIVE)
KEY PARAMETERS
Installed Power
4500 HP
Axle Load
21.7 T
Gauge
SG (1435mm)
Wheel arrangement
Co-Co
Wheel diameter
1092 mm
Height
4201 mm
Width
3200 mm
Length (Over Beam)
19964 mm
Weight
126 T
Max. Tractive Effort
540 KN
Maximum Speed
100 Kmph
Fuel tank capacity
6000 Ltrs.
Locomotive Control
Micro Processor Control
Diesel Engine
16, Cylinder, 710 series,2 stroke turbocharged after cooled
Transmission
AC-AC
Suspension
Axle hung/ taper roller bearing
Brakes
Air, Hand, Dynamic Brake Electronic Air Brake System
(KNORR-NYAB-Computer Controlled Braking)
Truck
High Adhesion HTSC (High Tensile Steel Cast) Truck
Unidirectional Traction Motor arrangement for high
adhesion
